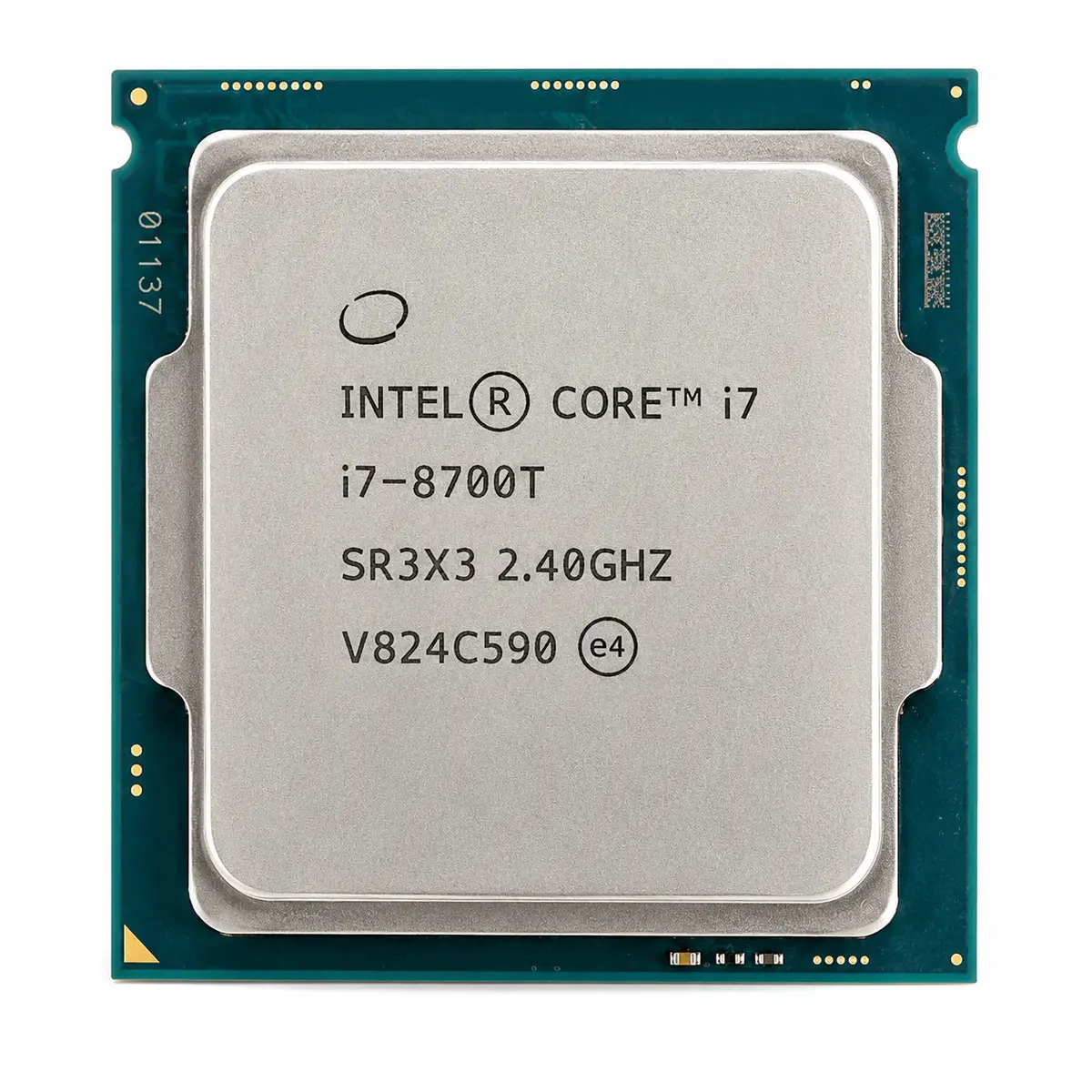

Intel Core i7-8700T 8th Gen Desktop Processor, 6-Core, LGA1151
The Intel Core i7-8700T is a low power desktop processor with six cores and twelve threads, built on Intel's 8th generation Core architecture, codenamed Coffee Lake. It runs at a base frequency of 2.40 GHz and reaches 4.00 GHz under Turbo Boost, backed by 12 MB of Intel Smart Cache within a 35 W thermal envelope that can be configured down to 25 W at 1.90 GHz. It installs in an FCLGA1151 socket on 300 series boards and supports dual channel DDR4 at up to 2666 MT/s, which puts twelve threads into small form factor and fanless systems that cannot take a 65 W part.
About Intel →Specification
Additional details
Compatibility and integration considerations
The FCLGA1151 socket is shared with earlier Intel generations, but this processor runs only on 300 series chipsets, which Intel lists as B360, B365, H310, H370, Q370, Z370 and Z390. It will not boot on 100 or 200 series boards even though it fits the socket, so verify the chipset rather than the socket when ordering against an existing platform. Boards that shipped before this generation launched may need a BIOS update before they will post. The 35 W envelope is what makes six cores and twelve threads viable in a small chassis, but the base clock is 2.40 GHz against 3.20 GHz on the 65 W i7-8700, and the 25 W configurable TDP-down mode drops it further to 1.90 GHz, so confirm which mode the board firmware selects before sizing sustained performance. Memory runs in dual channel DDR4 at up to 2666 MT/s with a 128 GB ceiling and ECC is not supported. Integrated Intel UHD Graphics 630 requires display outputs on the board.
Typical use cases
This processor is the low power version of the top six core Coffee Lake desktop part, so it appears in mini PCs, thin clients, medical carts and fanless industrial boxes that need twelve threads inside a 35 W budget. It is the part to reach for when a workload was sized on an i7-8700 but the chassis cannot dissipate 65 W. Most demand is replacement and fleet maintenance on 300 series platforms qualified around the 35 W envelope, where a hotter substitute would fail thermal validation.
